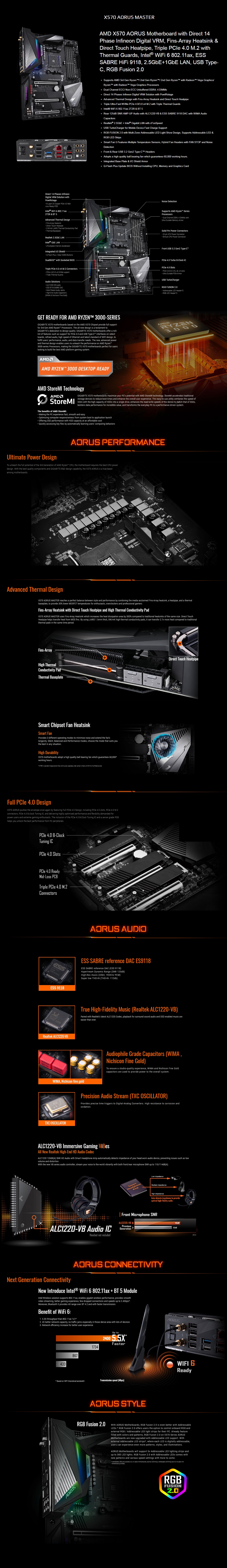

Gigabyte GA-X570-AORUS-MASTER MB X570 ATX: X570 Socket AM4 For AMD 2nd/3rd Gen. Selected Ryzen Processors 4x DDR4, 6x SATA 6Gb/s, M.2, USB 3.2, Dual Gigabit LAN, Wireless-AC/AX + Bluetooth 5.0, SLI/CrossFire

Availability:

2 in stock (can be backordered)


$530.00

2 in stock (can be backordered)

SKU: GA-X570-AORUS-MASTER Category:
Weight 5 kg
Dimensions 40 × 35 × 10 cm
Brand

Gigabyte

  • CPU
    1. AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors

    (Please refer “CPU Support List” for more information.)

  • Chipset
    1. AMD X570
  • Memory
    1. 3rd Generation AMD Ryzen™ processors:
      Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    2. 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
      Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
    3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    4. Dual channel memory architecture
    5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
      * ECC mode supported by 3rd Gen AMD Ryzen™/ 2nd Gen AMD Ryzen™ and only PRO sku of 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors.
    6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    7. Support for Extreme Memory Profile (XMP) memory modules

    (Please refer “Memory Support List” for more information.)

  • Audio
    1. Realtek® ALC1220-VB codec
      * The front panel line out jack supports DSD audio.
    2. ESS SABRE9118 DAC chip
    3. High Definition Audio
    4. 2/4/5.1/7.1-channel
    5. Support for S/PDIF Out
  • LAN
    1. 1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN1)
    2. 1 x Realtek® 2.5GbE LAN chip (10/100/1000/2500 Mbit) (LAN2)
  • Wireless Communication module
    1. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
    2. BLUETOOTH 5.0
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
      * Actual data rate may vary depending on environment and equipment.
  • Expansion Slots
    Integrated in the CPU (PCIEX16/PCIEX8):

    1. 3rd Generation AMD Ryzen™ processors:
      1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
      1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8)
    2. 2nd Generation AMD Ryzen™ processors:
      1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)
      1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode.
    3. 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
      1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16)

    Integrated in the Chipset (PCIEX4/PCIEX1):

    1. 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)
      * For 3rd Generation AMD Ryzen™ processors only.
    2. 1 x PCI Express x1 slot, supporting PCIe 4.0*/3.0
      * For 3rd Generation AMD Ryzen™ processors only.
  • Multi-Graphics Technology
      1. Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies

    Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologiesFor 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.

  • Storage Interface
    Integrated in the CPU (M2A_SOCKET):

    1. 3rd Generation AMD Ryzen™ processors:
      1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
    2. 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
      1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)

    Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET):

    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET)
      * For 3rd Generation AMD Ryzen™ processors only.
    2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2C_SOCKET)
      * For 3rd Generation AMD Ryzen™ processors only.
    3. 6 x SATA 6Gb/s connectors
    4. Support for RAID 0, RAID 1, and RAID 10
      * Refer to “1-9 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
  • USB
    Integrated in the CPU:

    1. 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) on the back panel
      * For 3rd Generation AMD Ryzen™ processors only.
    2. 2 x USB 3.2 Gen 1 ports on the back panel

    Integrated in the Chipset:

    1. 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
    2. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
    3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    4. 4 x USB 3.2 Gen 1 ports available through the internal USB headers

    Chipset+USB 2.0 Hub:

    1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 2 x 8-pin ATX 12V power connectors
    3. 1 x CPU fan header
    4. 1 x water cooling CPU fan header
    5. 3 x system fan headers
    6. 2 x system fan/water cooling pump headers
    7. 2 x addressable LED strip headers
    8. 2 x RGB LED strip headers
    9. 3 x M.2 Socket 3 connectors
    10. 6 x SATA 6Gb/s connectors
    11. 1 x front panel header
    12. 1 x front panel audio header
    13. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
    14. 2 x USB 3.2 Gen 1 headers
    15. 2 x USB 2.0/1.1 headers
    16. 1 x noise detection header
    17. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
    18. 2 x temperature sensor headers
    19. 1 x power button
    20. 1 x reset button
    21. 2 x BIOS switches
    22. 1 x Clear CMOS jumper
    23. Voltage Measurement Points
  • Back Panel Connectors
    1. 1 x Q-Flash Plus button
    2. 1 x Clear CMOS button
    3. 2 x SMA antenna connectors (2T2R)
    4. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
    5. 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red)
      * For 3rd Generation AMD Ryzen™ processors only.
    6. 1 x USB 3.2 Gen 2 Type-A port (red)
    7. 2 x USB 3.2 Gen 1 ports
    8. 4 x USB 2.0/1.1 ports
    9. 2 x RJ-45 ports
    10. 1 x optical S/PDIF Out connector
    11. 5 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Overheating warning
    6. Fan fail warning
    7. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
    8. Noise detection
  • BIOS
    1. 2 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      AutoGreen
      Cloud Station
      EasyTune
      Fast Boot
      Game Boost
      RGB Fusion
      Smart Backup
      Smart Keyboard
      Smart Survey
      System Information Viewer
      USB Blocker
      USB TurboCharger
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
    3. XSplit Gamecaster + Broadcaster (12 months license)
  • Operating System
    1. Support for Windows 10 64-bit
  • Form Factor
    1. ATX Form Factor; 30.5cm x 24.4cm
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
